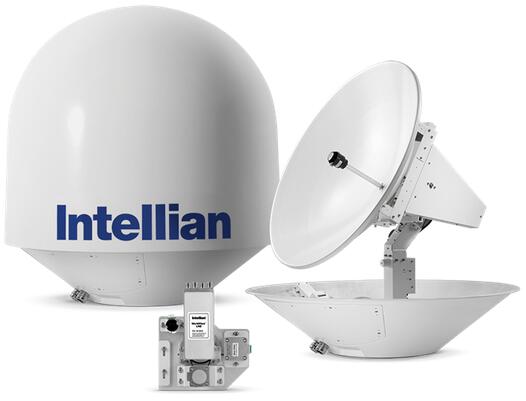

PHYSICAL
Radome
Height
142
cm
(55.9
inch)
Radome
Diameter
133
cm
(52.4
inch)
Reflector
Diameter
105
cm
(41.3
inch)
ENVIRONMENTAL
Operating
Temp.
Range
-25°C
~
55°C
(-13°F
~
131°F)
Storage
Temp.
Range
-40°C
~
80°C
(-40°F
~
176°F)
Warranty
3
Years
Parts
and
1
Year
Labor
PERFORMANCE
Reception
Frequency
Ku-band
:
10.7
~
12.75
GHz
Elevation
Range
-15°
~
120°
Roll
/Pitch
/
Yaw
Roll
±25°,
Pitch
±15°,
Yaw
±8°
@ 6
sec
period
Turn
Rate
Up
to
12°
per/sec
15°
sec
²

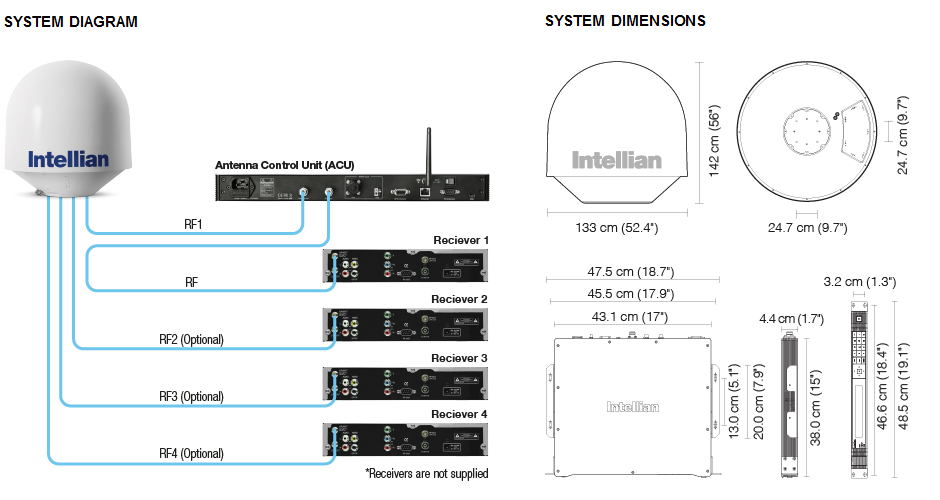

ANTENNA CONTROL UNIT
Dimensions
(W ×
D ×
H)
43cm
×
29.6cm
×
4.4
cm
(17
inch
×
11.6
inch
×
1.7
inch)
Display
2
line
40
character
VFD
module
GPS
Interface
Built-in
(NMEA
0183
GPS)
Gyrocompass
Interface
NMEA
0183
/
2000
Power
Requirement
100~240V
AC,
50~60
Hz,
2A
Power
Consumption
Typ.
50W,
Max
100W
LNB LO FREQUENCIES
Local
Oscillator
Frequency
Polarization
/
Area
11.250
GHz
Dual
Circular
/
North
America,
Russia
10.500
GHz
Dual
Circular
/
Latin
America
10.750
GHz
Single
Circular
/
Korea
10.750
GHz
Dual
Circular
/
China
10.678
GHz
Single
Circular
/
Japan
11.300
GHz
Dual
Linear
/
South
East
Asia
10.700
GHz
Dual
Linear
/
Australia
Universal
(Low
9.75
GHz,
Heigh
:
10.6
GHz):
Quad
Linear
/
Europe,
Middle
East,
Africa,
some
Asia
countires
|
